Rubber
Leg Support #2
By
Roy & Dwight Blair
![](images/rubber_leg_support_2/rb1.jpg)
Here's another way of building a support for the rubber legs without
welding. The entire robot stands on a 3/4" thick wood base
that is 34" X 34" .
![](images/rubber_leg_support_2/rb2.jpg)

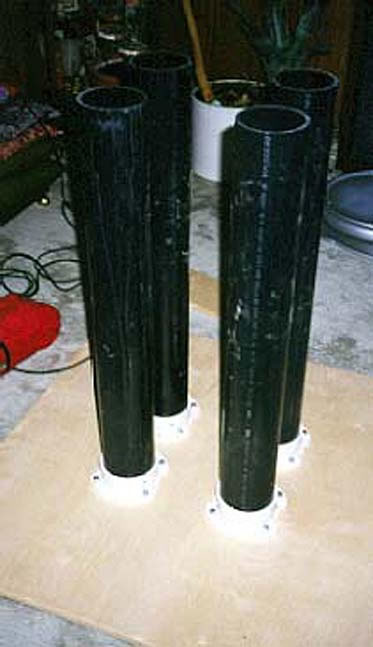

Four 4" ABS pipe couplings with the sides cut to fit inside
the treadsection are bolted to the base and 4" ABS pipes are
bolted to the couplings.
![](images/rubber_leg_support_2/rb3.jpg)
The treadsections fit over the ABS setup.
![](images/rubber_leg_support_2/rb4%202.jpg)
Knees and upper knee plates are bolted down.
![](images/rubber_leg_support_2/rb5.jpg)
A sub-waisteplate cut down the middle for ease of installation into
the first rib of the legs has four more couplings attached.
![](images/rubber_leg_support_2/rb6.jpg)
This fits on top of the ABS pipes (shown without legs).
![](images/rubber_leg_support_2/rb7.jpg)
The sub-waistplate, regular waistplate and donut are all fastened
together sandwiching the top flange of the legs between the sub-waistplate
and the regular waistplate
![](images/rubber_leg_support_2/rb8.jpg)
This setup fits on top of the ABS pipes.
![](images/rubber_leg_support_2/rb9.jpg)
Base can be "landscaped" with model railroad scenery.
![](images/rubber_leg_support_2/rb10.jpg)
This also provides a steady base in case your Robot is going to
be standing on carpet.
|
