Leg
Mold Making
By
Dewey H.
| Page
1 | Page 2 | Page
3 |
Prepping
The Master
![](images/leg_mold_making/leg01.jpg)

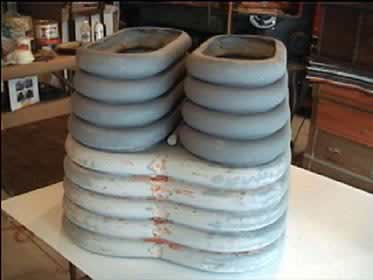

The master needed to be sanded and any imperfections filled with
Bondo and spotting putty.
![](images/leg_mold_making/leg02.jpg)

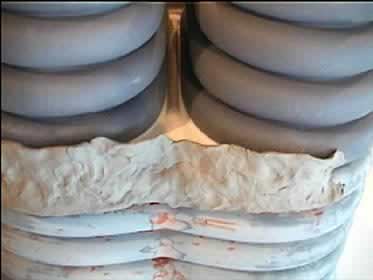

A dam was made from clay to allow a crotch section to be poured
using resin.
![](images/leg_mold_making/leg05.jpg)

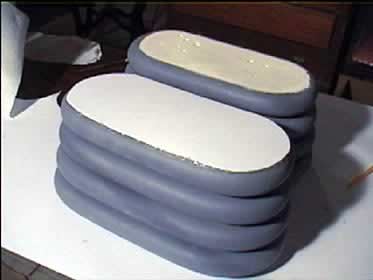

The tops of the leg sections were filled and an additional lip section
was added to allow the leg sections snap into the knee plates without
any additional mounting.
![](images/leg_mold_making/leg07.jpg)

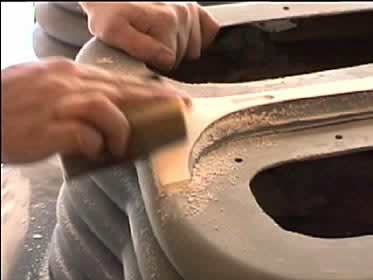

The crotch section is filed and sanded to the proper contour.
![](images/leg_mold_making/leg12.jpg)

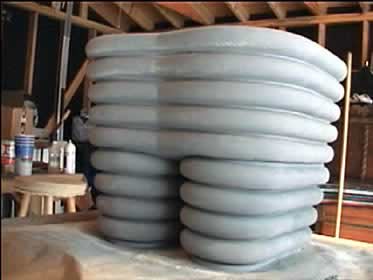

Final contouring, spot putty, primering, and wet-sanding still needed
but getting closer to looking like a nice set of legs.
![](images/leg_mold_making/leg13.jpg)

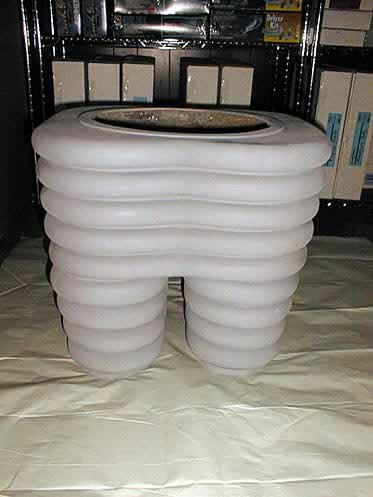

Master complete with final primer applied.
![](images/leg_mold_making/leg14.jpg)

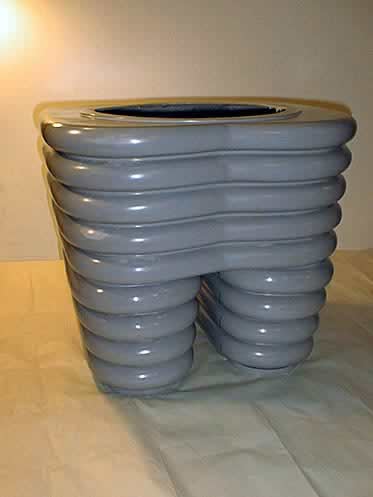

Legs after waxing so master won't stick in the mold.
![](images/leg_mold_making/leg15.jpg)
Mold dividing marks- 5 piece mold will consist of an inner crotch
section, a front section, a back section, and two side sections.
![](images/leg_mold_making/leg16.jpg)

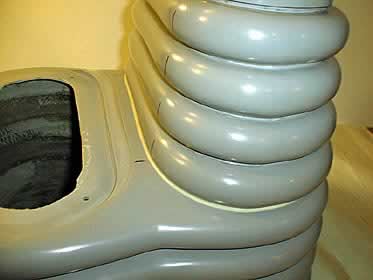

The seams being filled in with plastic putty.
|
