09/18/2004
- Treadsection Assembly
Finally ready to assemble all the fabricated
Treadsection parts. I plan to hold off painting until all parts
have been assembled and tested.
First,
the Left Tread Section:

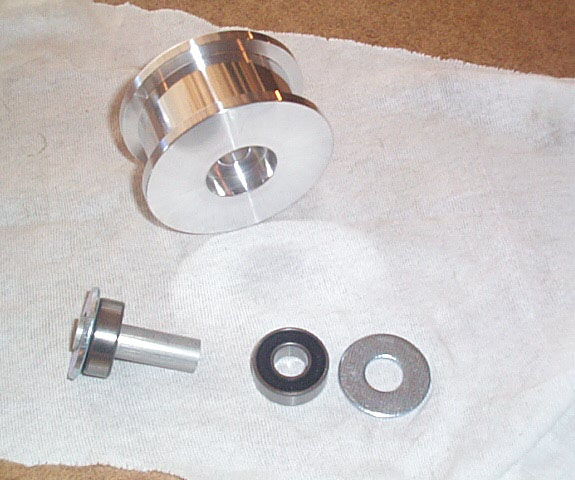

Here's
a shot of the wheel, bearings, bushing, and spacer washers.

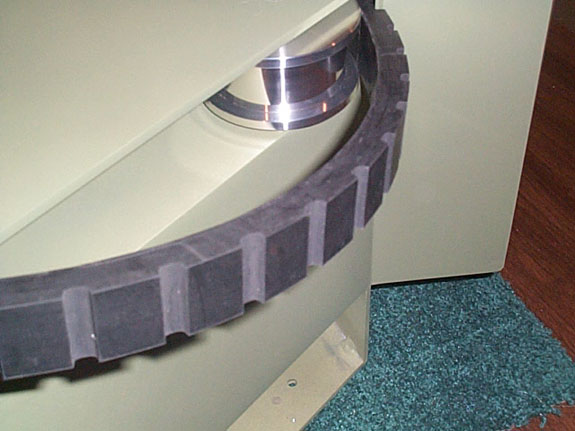

Installing
the first upper wheel.

All
inner wheels and belt installed.

Ready
to do the outter wheels next.

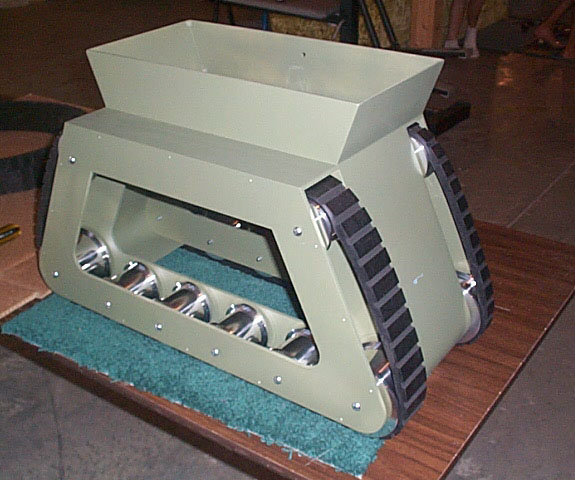

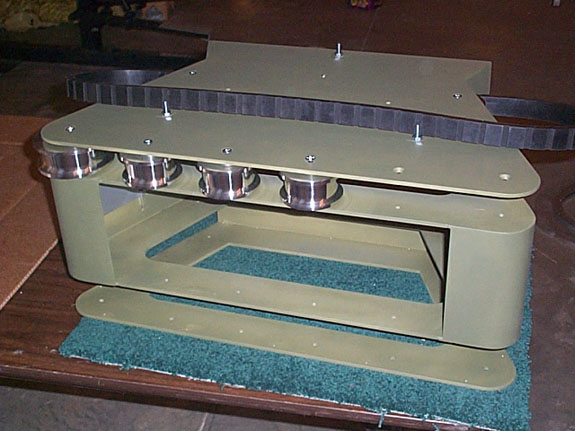

Outter
wheels and belt installed.

Installing
the leg support shelfs to the upper wheel axle bolts.

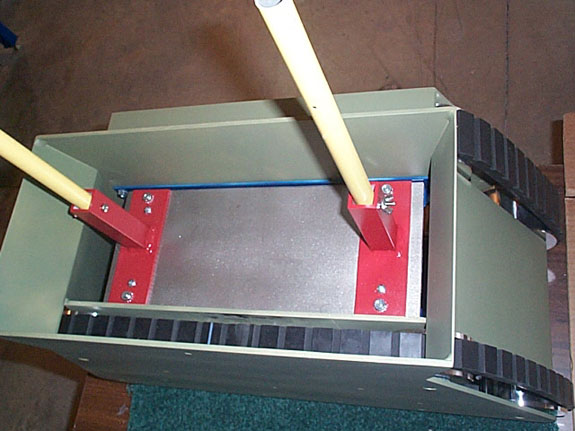

Leg
Support Installed.

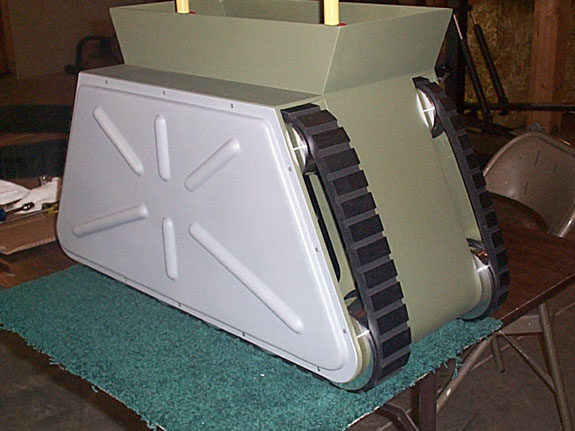

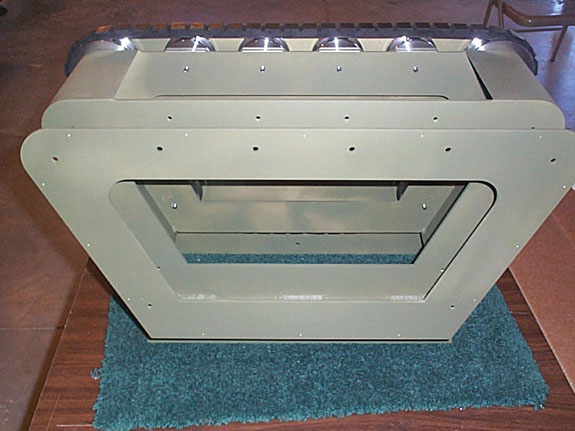

Side
Panel attached. Left Tread Section Assembled.
Right
Tread Section Assembly

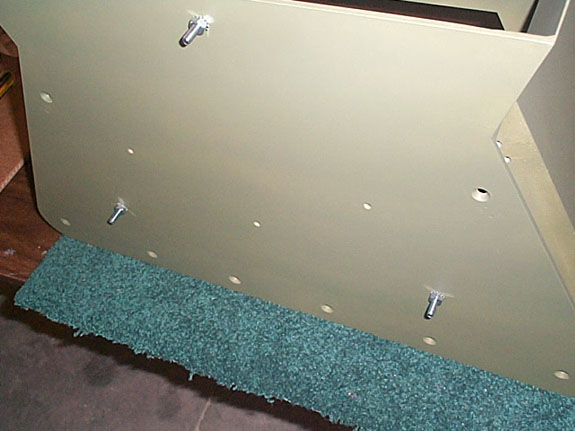

The
three bolts used to hold the two Tread Sections together, once
assembled.

Inner
wheels and belt first, then the outter.

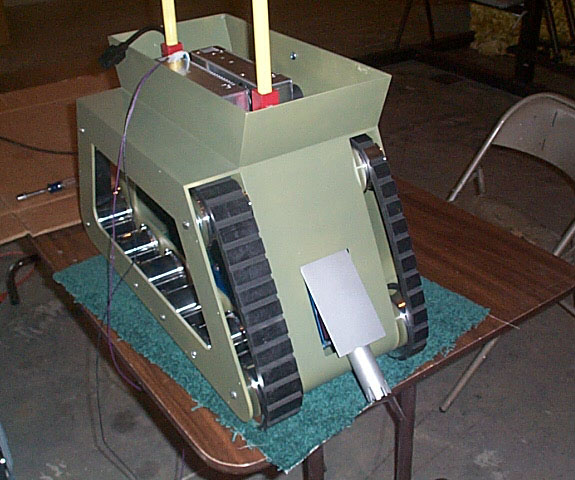

Attaching
the Soil Sampler.

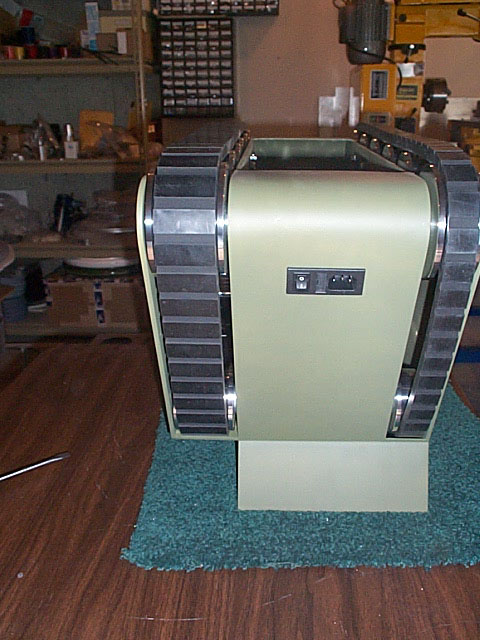

The
power connector is next.

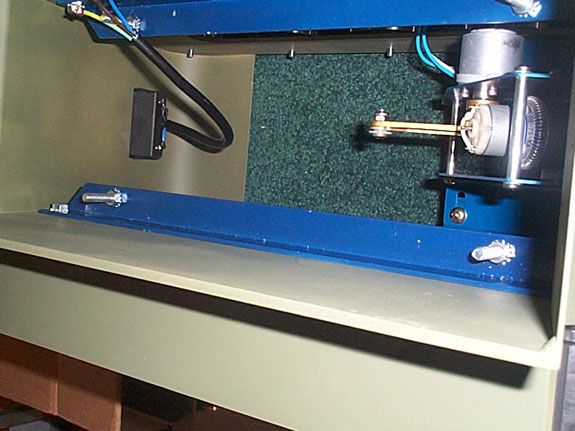

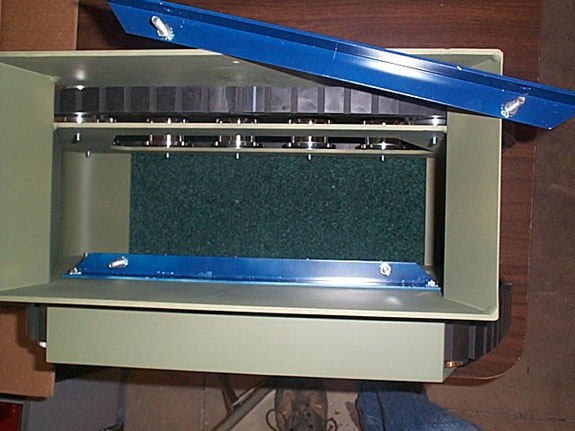

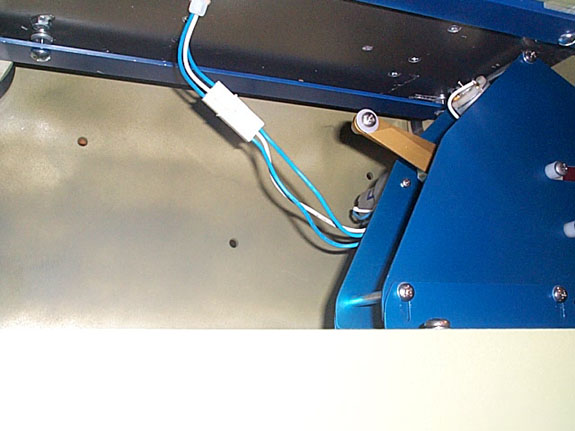

Inside
shot showing power connector and leg support shelfs in place.

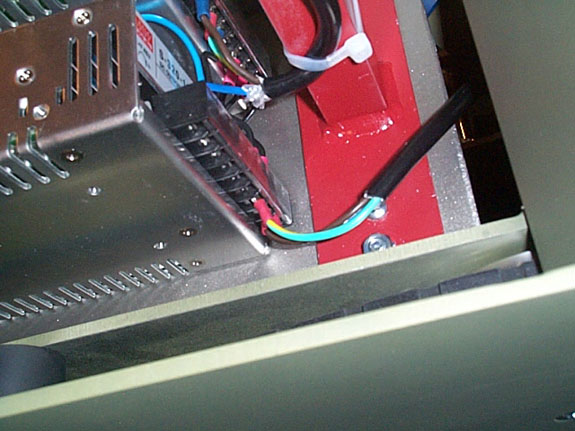

Power
input connected to power supplies.

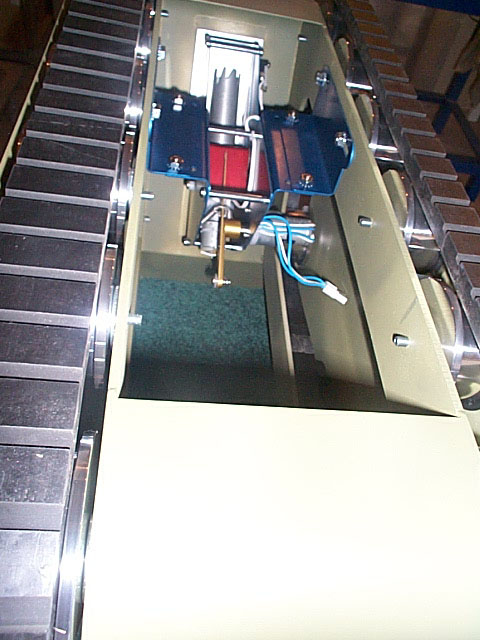

Soil
sampler connected.

Testing
power supplies and soil sampler operation.

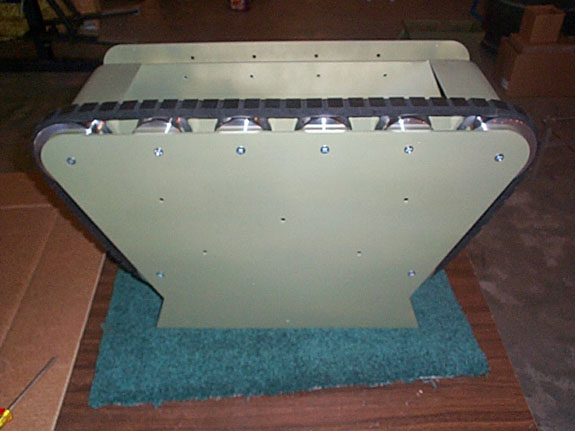

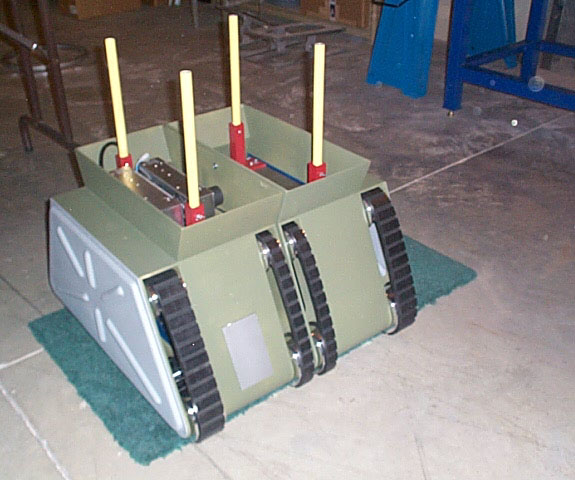

Both
Tread Sections bolted together.

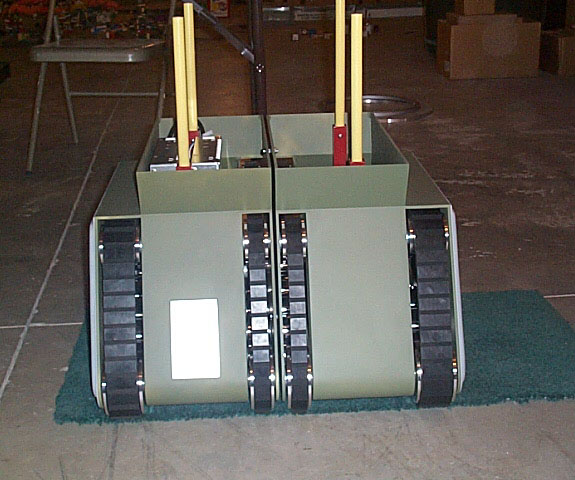

A final
shot of the assembled tread sections.
