Brain Light Rods

By Craig Reinbrecht

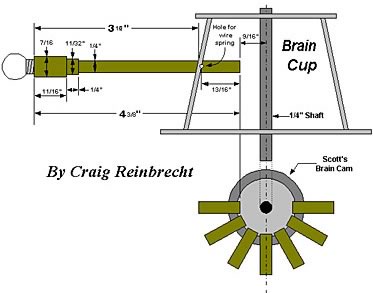

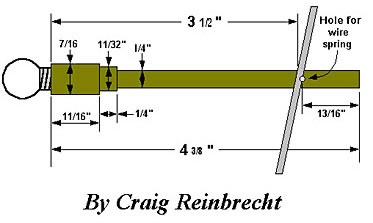

These diagrams were created by very carefully scaling some good photos of the original robot. It is meant to clear up misconceptions about the length, shape, and size of the light rods and to be a guide for creating authentic and accurate reproductions.

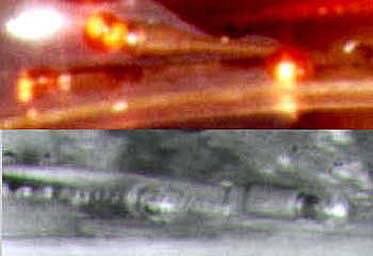

Here are a few pictures used to create this diagram
